Products - Rack

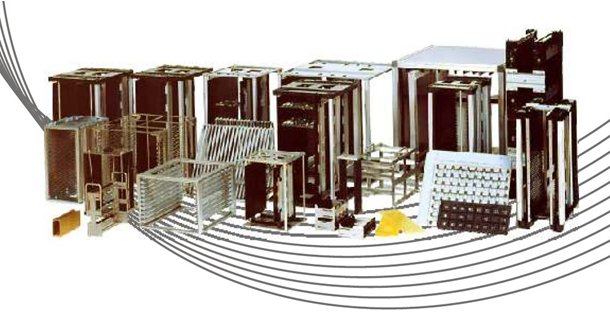

The PCB magazines NIKKO-RACKs™ are easy to use, easy adjustment, economic, robust and resistant to high temperature card - 135 ° C (R type) and 165 ° C (SR type).

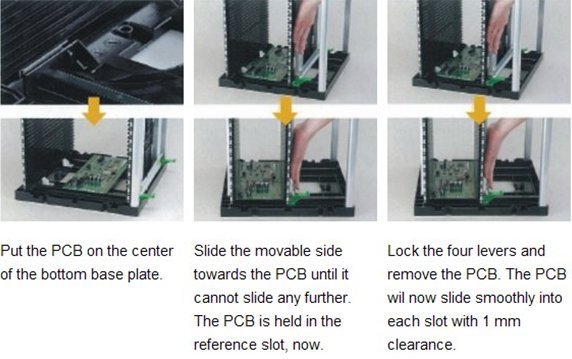

The patented "One-Touch parallel adjustment" allows for the fast and safe adjustment of the movable side to fit the rack to the various card formats used in production without loss of time.

PCB qick-width adjustment in less than 5 seconds


Click to see the video

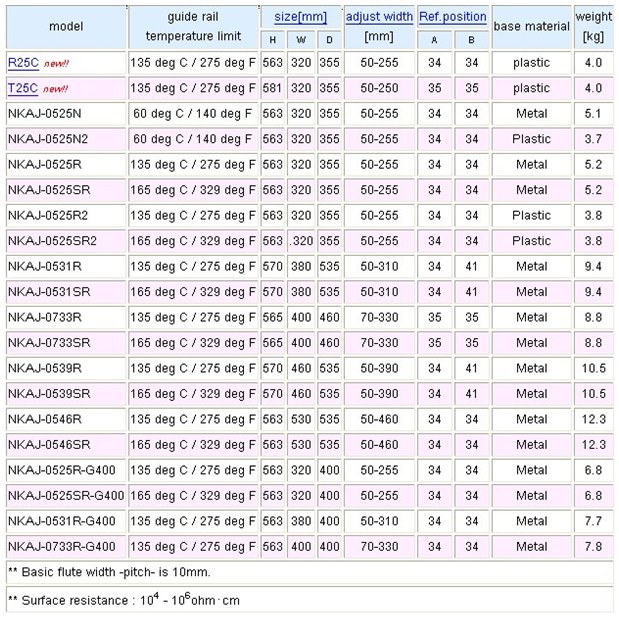

Rack Mod. R25C-4C

Magazine with One-Touch adjustment
Plastic base
Reversibile type
RoHS detective compliance
ESD Safety

N° columns = 4
ESD Safety
50 slots
10 mm pitch
Temp. resistance in card guide = 135°C

Quick adjustable from 50 mm to 250 mm
Max PBC dimensions L=350 x W=250 mm
External dimensions: 355 x 320 x 563 mm

Rack Mod. 0539R

Magazine with One-Touch adjustment
Metal base
RoHS detective compliance
ESD Safety
columns = 4

ESD Safety
50 slots
10 mm pitch
Temp. resistance in card guide = 135°C
Quick adjustable from 50 mm to 390 mm
Max PBC dimensions L=535 x W=390 mm
External dimensions: 535 x 460 x 570 mm
.


Product Information (Download)
