Products - Board Handling

by ENGMATEC GmbH

Transport and handling equipment for SMD lines, assembly systems and test lines

The well thought-out module system TECONA Move it! is made up of versatile handling equipment and transport systems for PCBs, soldering frames and carriers.
All modules are matched with each other and can be combined with each other as well as with various production systems.
An intelligent control concept and standardized interfaces ensure reliable function in any system configuration without control unit change.

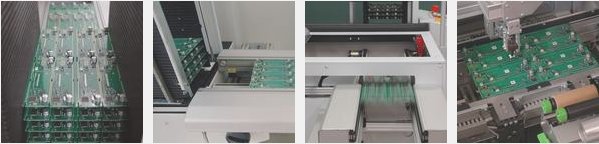

The combination of the transport widths, magazine types and interfaces is customer-specific, and components, e.g. soldering processes or vision system can be integrated as required. The special flexibility of the standard modules allows to realize cost-efficient adaptations without problems for special customer requirements.

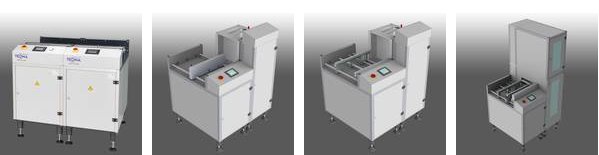

Loader and Unloader Magazine loader Magazine unloader Bare board stacker Bare board destacker Combined Loader/Unloader	Conveyors Standard length 400mm to 2.400mm Any quantity of segments Toothed belts, flat belts, pin / roller chain Design also as dual lane 1, 2 or 3 transport layer possible
Buffer Stations Buffering according to FIFO-method Buffering according to LIFO-method Manual magazine change with 1 magazine Automatic change with several magazines Process buffers	Handling Systems Turn units Flip units Lift units Traverser Gate stations
